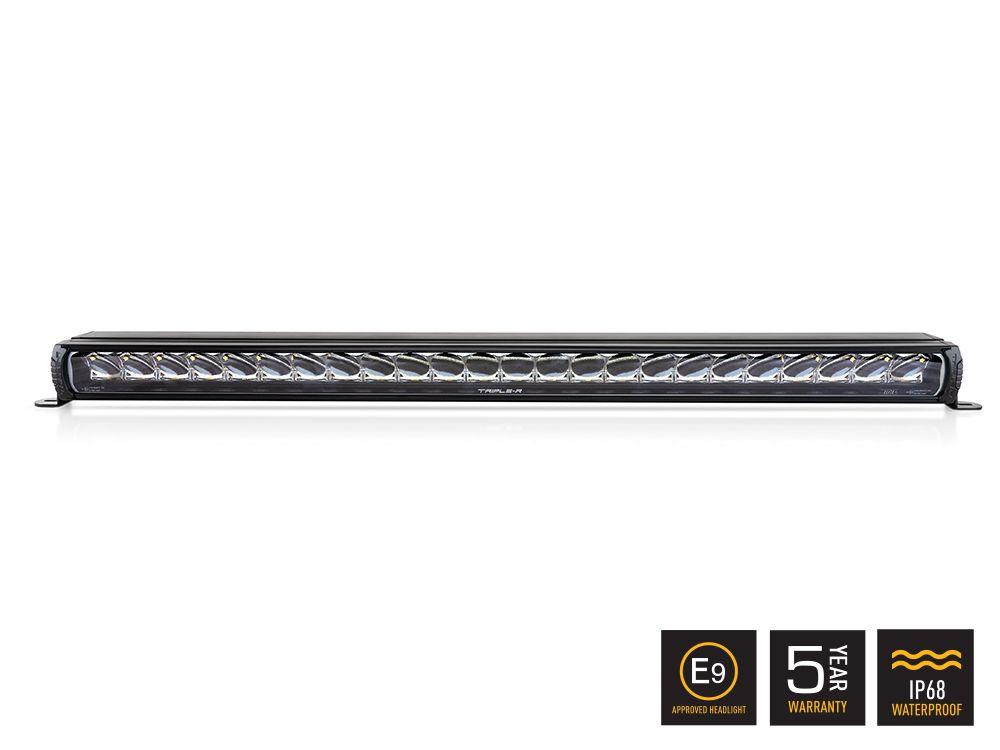

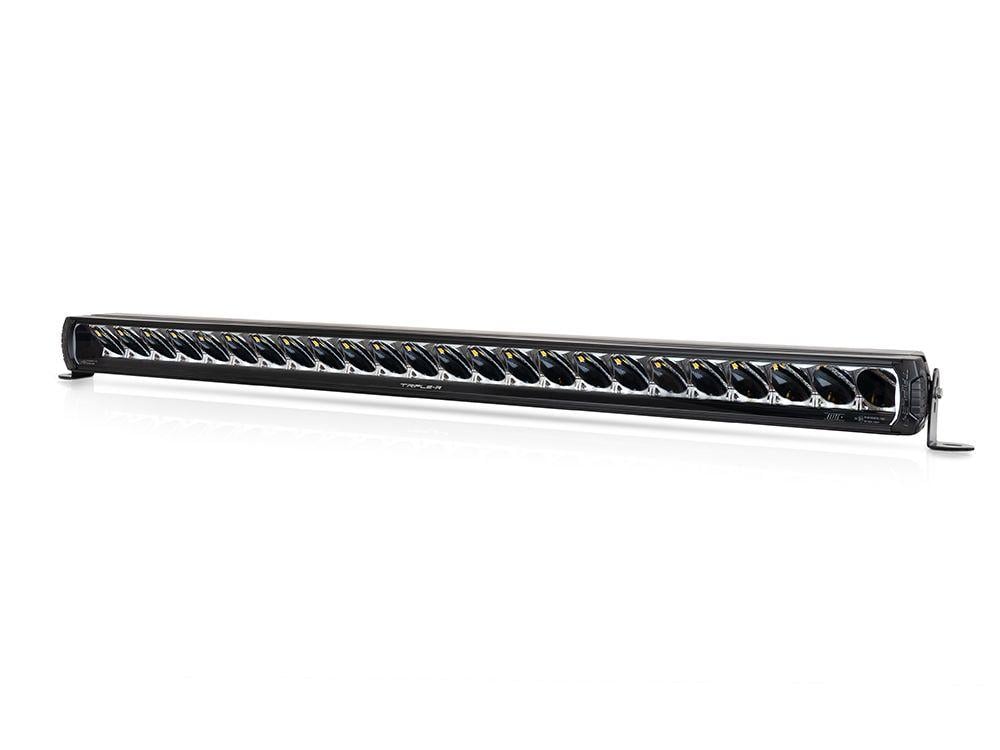

Triple-R 24 Elite+ - Yellow LEDs optimised for use in snow / fog / dust conditions

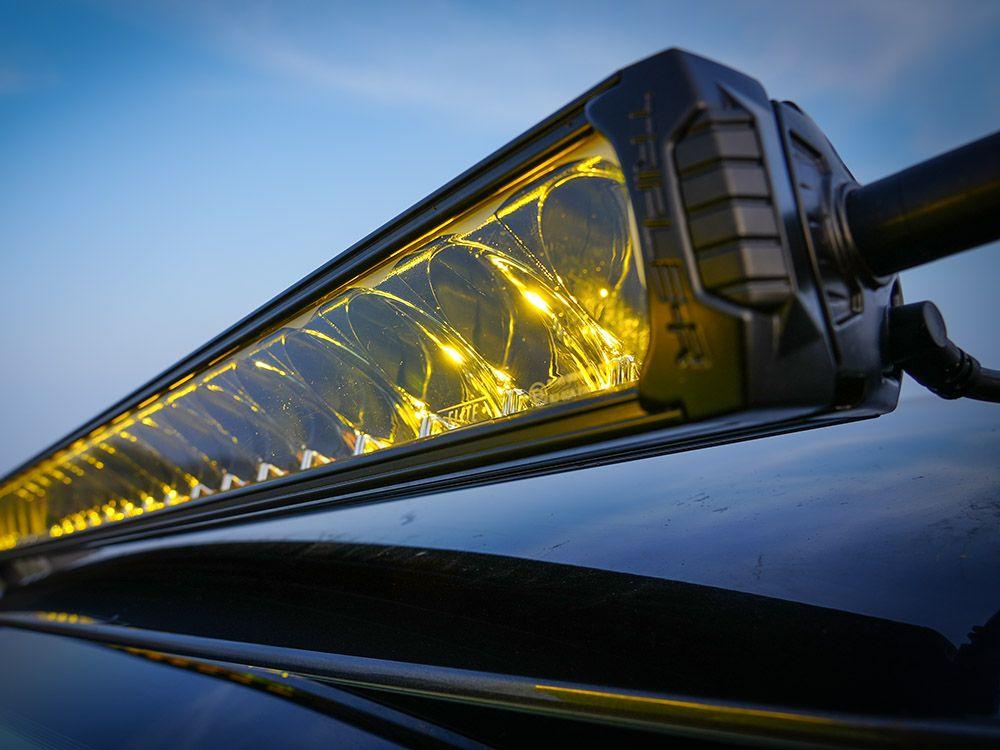

The Elite+ range represents the evolution of Lazer’s highest performance LED lighting solutions, featuring enhanced performance, light distribution, and functionality. A key innovation is the integration of supplemental yellow LEDs, providing several lighting modes tailored for different conditions:

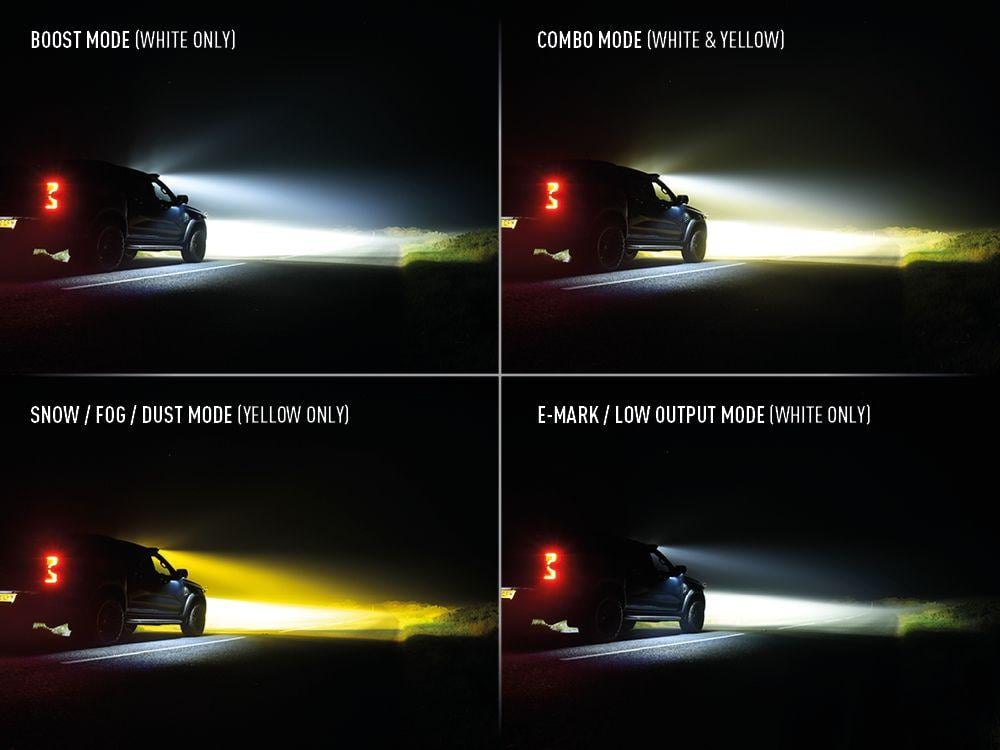

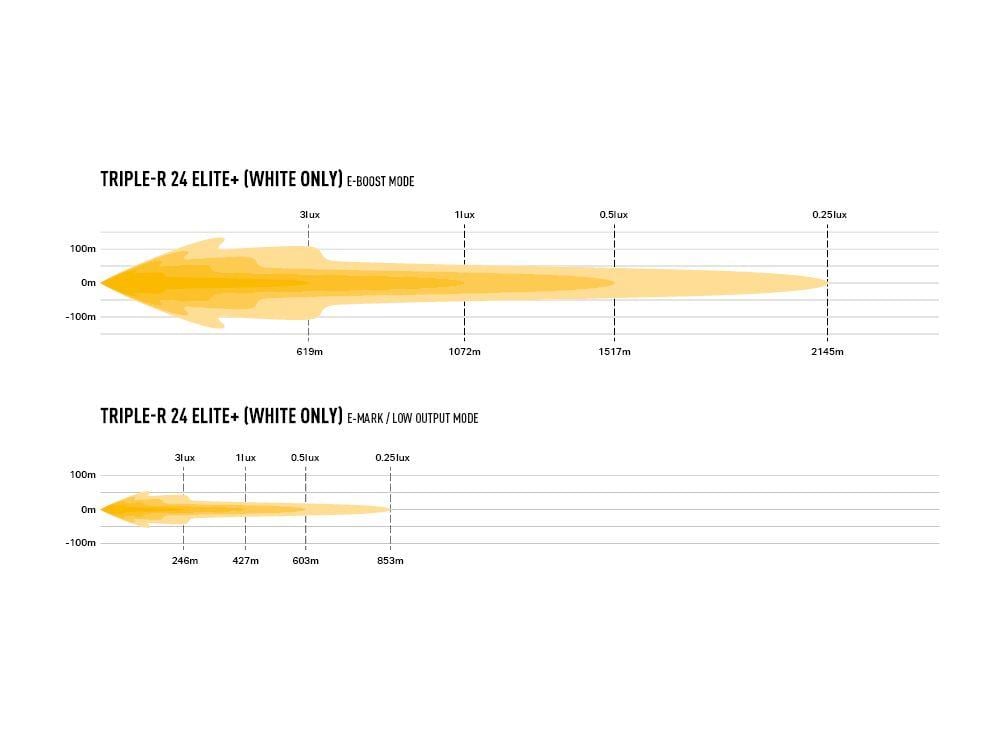

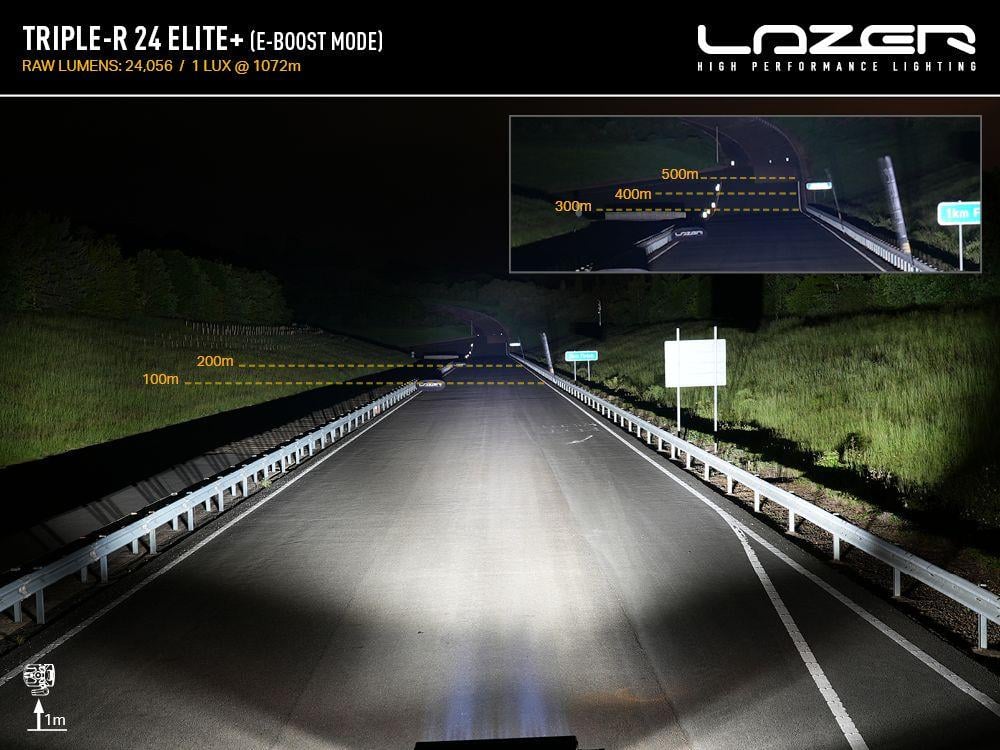

• Boost Mode (white only): Optimal for high beam performance.

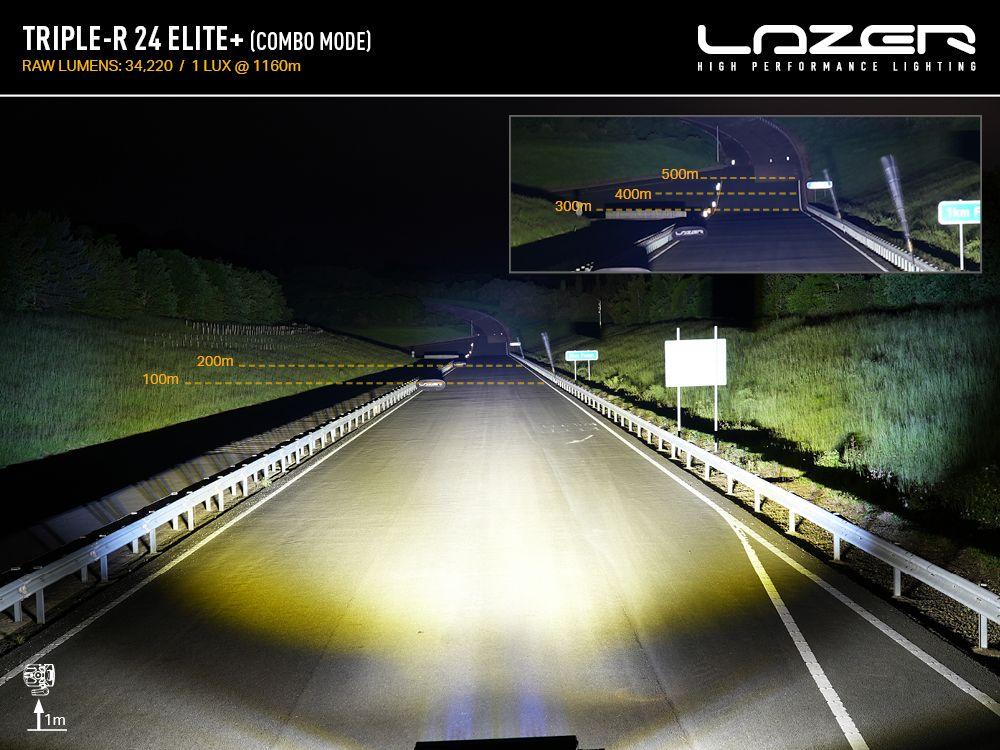

• Combo Mode (white + yellow): Ideal for night driving, offering impressive visibility.

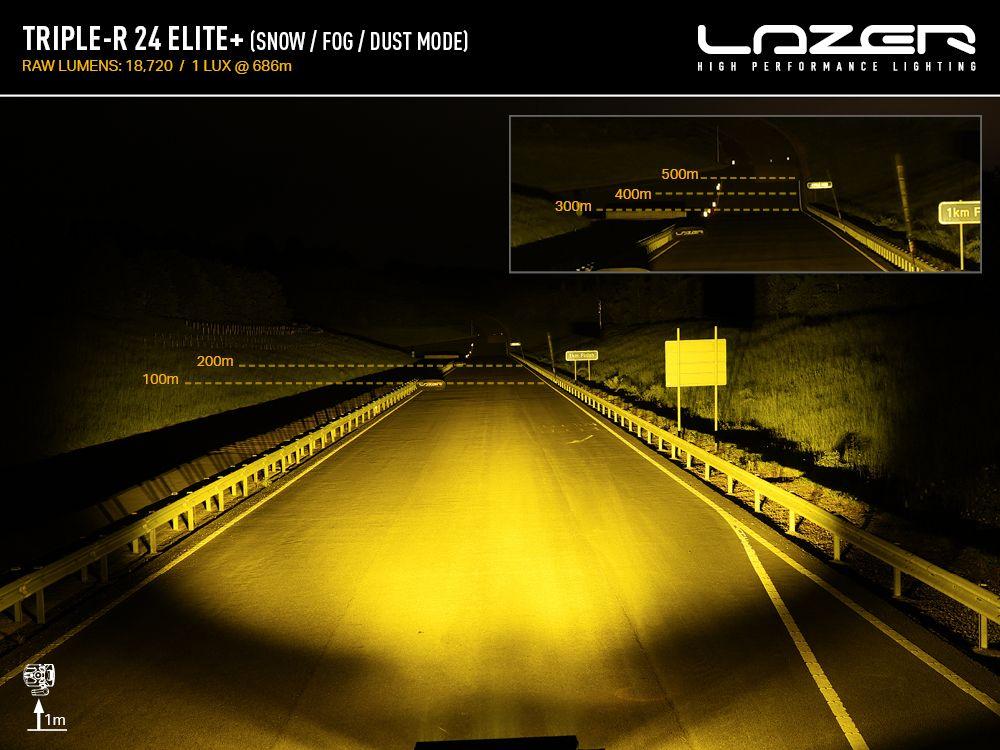

• Snow/Fog/Dust Mode (yellow only): Yellow LEDs angled to the sides and downward, perfect for snowy, foggy, or dusty environments.
• E-mark Mode (white only, reduced output): Compliant with UNECE Reg 149 for road-legal use.

The lighting modes are controlled via a momentary switch, with a memory function that recalls the last selected mode when the vehicle is restarted. Holding the switch for 2 seconds immediately activates E-mark mode.

• Key Features:48 white LEDs + 40 yellow LEDs provide an impressive raw lumen output: 24,056 in Boost mode and 34,220 in Combo mode.
• 340W power consumption, 26.1A current draw at 14V.
• Advanced electronic design supports performance and durability.

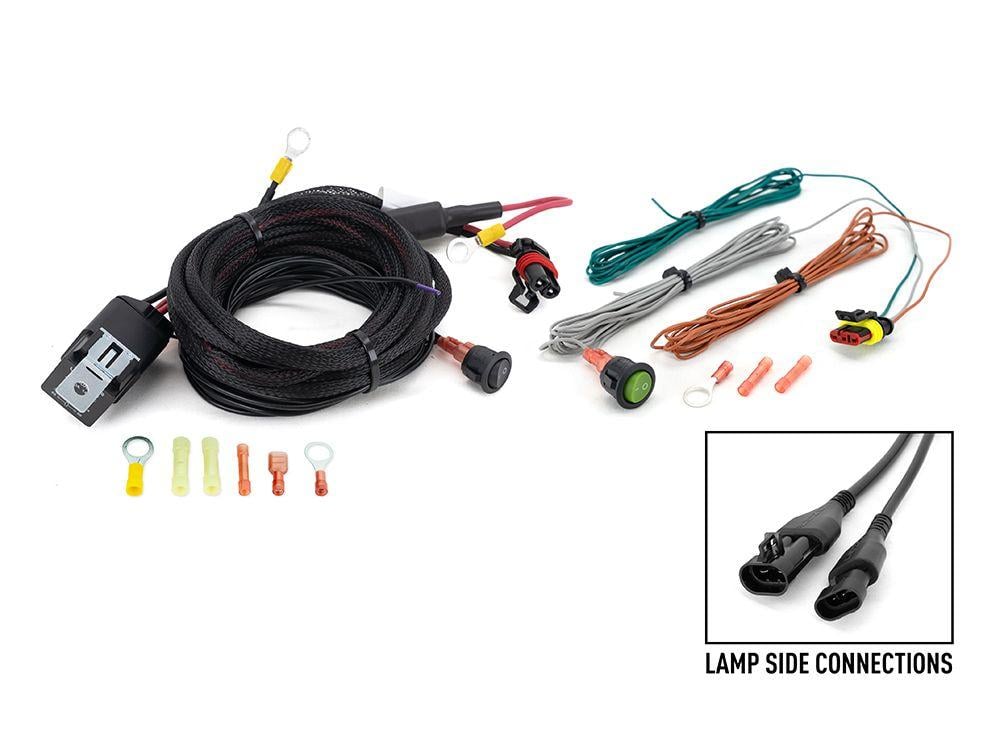

• Wiring: Includes high-power 2-pin Aptiv connector for high beam operation and 3-pin Superseal connector for function select, position light, and backlight.
• Integrated white and amber position light function.
• E-mark certified (Reg 149, Class B, Driving Light).
• Momentary switch for easy mode switching, with a memory function for convenience.
• Memory function stores the last selected mode.
• CAE-optimized heatsink for improved thermal dynamics.
• Anodized pre-treatment and automotive-grade powder top-coat for superior corrosion and chemical resistance.
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer.
• IP68 watertight protection for all-weather durability.
• This product, designed, engineered, and manufactured in the UK, ensures the highest standards of performance, reliability, and design—making it an excellent choice for harsh environments and long-lasting use.

part number : 00R24-G2-PLUS-B
